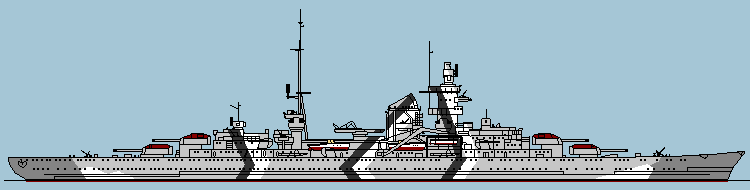

Profile drawing of Prinz Eugen
212,5 mOverall length
18400 tMaximum displacement
33,5 knMaximum speed
~1600Complement

Design and service

The story of Prinz Eugen

The Admiral Hipper class emerged from Germany's return to heavy-cruiser construction in the 1930s. Although conceived within the 10,000-ton, 20.3 cm-gun limits associated with the Washington treaty system, the completed ships were substantially larger than the nominal limit.

Five ships were laid down between 1935 and 1937. Admiral Hipper and Blücher formed the first group, while Prinz Eugen, Seydlitz and Lützow incorporated an improved design. Seydlitz and Lützow were initially considered as 15 cm-gun light cruisers, but both were reordered with 20.3 cm guns. The class was intended for commerce warfare, combining heavy armament with sufficient speed to avoid stronger opponents.

In practice, the ships' high-pressure steam machinery consumed too much fuel for sustained Atlantic operations and proved difficult to maintain. Only Admiral Hipper, Blücher and Prinz Eugen were completed as heavy cruisers; construction of Seydlitz and Lützow remained unfinished.

Prinz Eugen entered service in August 1940 and accompanied Bismarck during Operation Rheinübung, taking part in the Battle of the Denmark Strait before reaching Brest independently. She returned to Germany through the English Channel during Operation Cerberus in February 1942, then lost her stern to a torpedo from the British submarine Trident. From 1944 she supported German forces retreating along the Baltic coast with naval gunfire. The cruiser surrendered at Copenhagen in May 1945 and was transferred to the United States. After surviving both atomic tests at Bikini Atoll, she developed an uncontrollable list and capsized at Kwajalein on 22 December 1946.

Several artifacts from Prinz Eugen survive today. One of her Arado Ar 196 aircraft is preserved by the Smithsonian Institution, while the ship's bell is held by the National Museum of the United States Navy in Washington, D.C. Guns removed from turret Anton before the Bikini tests remain at the naval test facility in Dahlgren, Virginia, and one of the ship's propellers is displayed at the Naval Memorial in Laboe, Germany.

Operational history

Service timeline

Before commissioned, the Prinz Eugen was twice hit by British bombs in the Germaniawerft, Kiel

Commissioned

Final construction work in Kiel.

Training in the Baltic Sea.

Operation "Rheinübung": Leaves Gotenhafen (Gdynia) together with battleship Bismarck.

Anchoring in the Kors Fjord, Prinz Eugen and Bismarck are spotted by British air reconnaissance.

Battle with British battlecruiser Hood and battleship Prince of Wales. Prinz Eugen scores the first hit on the Hood which later explodes in the battle. After the Battle, in which the Prince of Wales is damaged too, the Prinz Eugen is sent off in the North Atlantic while the Bismarck tried to escape to France.

Returns to Brest because of engine problems.

Hit by a bomb in dock in Brest.

Operation "Cerberus": Returns to Germany via the British Channel together with battlecruisers Scharnhorst and Gneisenau, escorted by 6 destroyers (Paul Jakobi, Richard Beitzen, Friedrich Ihn, Hermann Schoemann, Z25, Z29) and 14 torpedo boats (e.g. Kondor, Jaguar, T12, T13)

Lost stern after a torpedo hit from the British submarine Trident outside the Drontheim Fjord while on transfer to Norway.

Repairs in Kiel.

Battle training in Baltic Sea together with Panzerschiff Lützow.

Two unsuccessful transfer attempts to Norway.

Used as a training ship.

Stationed at the Finnish coast.

Shore bombardment at the Kurland front line.

Supported retiring German Army at Memel.

Collides with light cruiser Leipzig north of Hela, only light damage at the Prinz Eugen.

Continued support of the German Army.

Prinz Eugen sails to Copenhagen.

Placed under British command.

Handed over to the U.S., renamed as USS IX 300.

Sails to the United States.

Transferred to Honolulu.

Used in atomic bomb test "Able", only light damage.

Used in atomic bomb test "Baker", ship took some damage below the waterline. After the tests, the Prinz Eugen is towed to the Kwajalein Atoll.

After six days of increased list, the Prinz Eugen capsized and sinks.

At a glance

Technical profile

Dimensions, armament, protection and performance.

Dimensions

Size (Max)
18400 t
Length (Total)
212,5 m
Beam
21,8 m
Draft
7,2 m
Crew
~1600

Armament

20,3cm SK (8")
8
10,5 cm L/65 C/33
12
4 cm Flak
17
2 cm MG L/64
28
53,3 cm Torpedoes
12

Aircraft

Arado Ar 196
3

Protection

Deck
12-50 mm
Belt
70-80 mm
Command Tower
50 - 150 mm
Turrets
70 - 105 mm

Machinery

Shafts
3
Turbines
3
Type
Germania

Performance

Total Performance
136000 shp
Speed
33,5 kn
Range
7200 miles at 20 kn

The archive

Photographs

Original postcard and photographic material from the private collection.

Prinz Eugen (unknown postcard)
Prinz Eugen (unknown postcard)

The archive

Models

Ship models in 1/1250 scale.

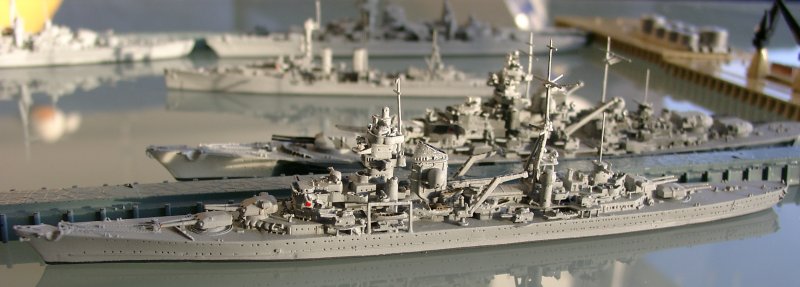

Neptun 1030 Prinz Eugen
Neptun 1030 Prinz Eugen

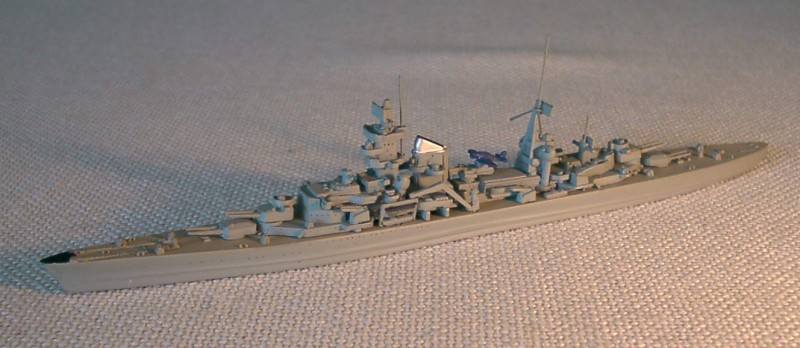

Delphin 17 Prinz Eugen
Delphin 17 Prinz Eugen

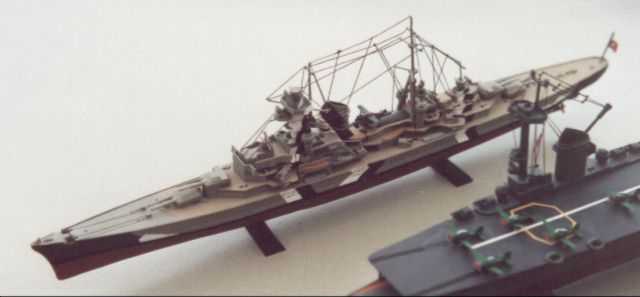

Picture of top port bow view with Seydlitz in front
Picture of top port bow view with Seydlitz in front

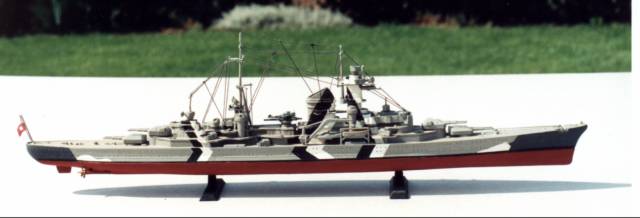

Stearboard side view
Stearboard side view

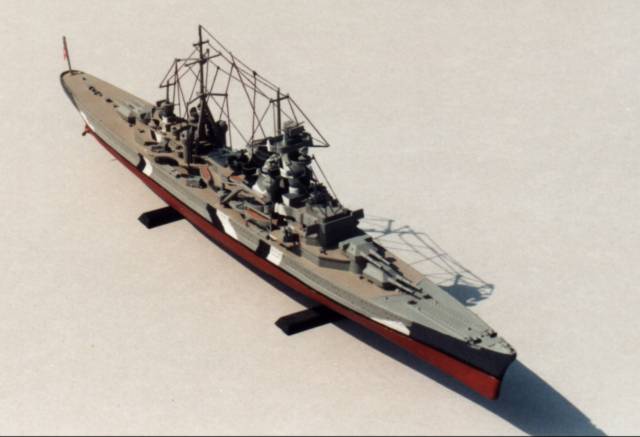

Top Stearborad bow view
Top Stearborad bow view

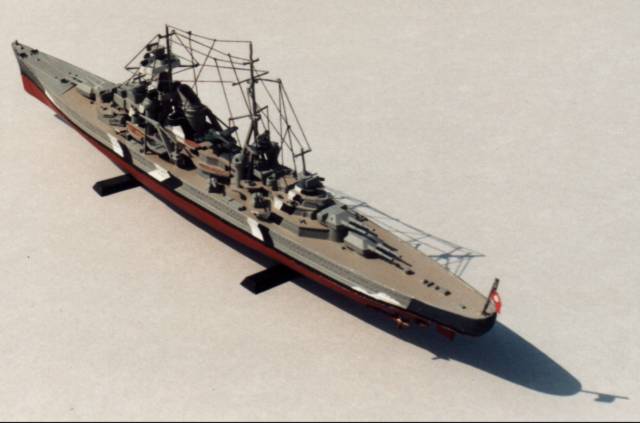

Top port stern view
Top port stern view

Construction record

Prinz Eugen

Laid down
Germaniawerft Kiel, 23.04.1936 (Slipway 2)
Launched
22.08.1938
Commissioned
01.08.1940
Fate
sunk summer 1946 (Kwajalein-Atoll)
Cost
104,5 Mio Reichsmark
