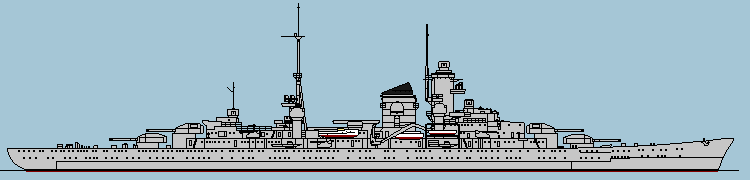

Profile drawing of Seydlitz
210,0 mOverall length
19800 tMaximum displacement
32,5 knMaximum speed
~1600Complement

Design and service

The story of Seydlitz

The Admiral Hipper class emerged from Germany's return to heavy-cruiser construction in the 1930s. Although conceived within the 10,000-ton, 20.3 cm-gun limits associated with the Washington treaty system, the completed ships were substantially larger than the nominal limit.

Five ships were laid down between 1935 and 1937. Admiral Hipper and Blücher formed the first group, while Prinz Eugen, Seydlitz and Lützow incorporated an improved design. Seydlitz and Lützow were initially considered as 15 cm-gun light cruisers, but both were reordered with 20.3 cm guns. The class was intended for commerce warfare, combining heavy armament with sufficient speed to avoid stronger opponents.

In practice, the ships' high-pressure steam machinery consumed too much fuel for sustained Atlantic operations and proved difficult to maintain. Only Admiral Hipper, Blücher and Prinz Eugen were completed as heavy cruisers; construction of Seydlitz and Lützow remained unfinished.

Seydlitz was launched in January 1939 but was never commissioned. Although construction had progressed far, work stopped during the war and plans were made to complete her through conversion into the auxiliary aircraft carrier Weser. The conversion began in 1942, with the main armament and much of the superstructure removed, but the project was abandoned the following year. The incomplete hull was transferred to Königsberg, used as an accommodation ship and scuttled as Soviet forces approached. Raised after the war and taken to Leningrad, Seydlitz was judged beyond economical repair and was ultimately scrapped in 1958.

Operational history

Service timeline

Launched at Deschimag shipyard, Bremen.

Conversion to a Auxiliary aircraft carrier (Project Weser 1) is started.

Construction stopped, ship is transferred to Königsberg.

Blown up with explosives and set on ground.

Wreck scrapped.

At a glance

Technical profile

Dimensions, armament, protection and performance.

Dimensions

Size (Max)
19800 t
Length (Total)
210,0 m
Beam
21,8 m
Draft
7,9 m
Crew
~1600

Armament

20,3cm SK (8")
8
10,5 cm L/65 C/33
12
4 cm Flak
6
3,7 cm L/83
8
2 cm MG L/64
32
53,3 cm Torpedoes
12

Aircraft

Arado Ar 196
3

Protection

Deck
12-50 mm
Belt
70-80 mm
Command Tower
50 - 150 mm
Turrets
70 - 105 mm

Machinery

Shafts
3
Turbines
3
Type
Blohm & Voß

Performance

Total Performance
132000 shp
Speed
32,5 kn
Range
8000 miles at 20 kn

The archive

Models

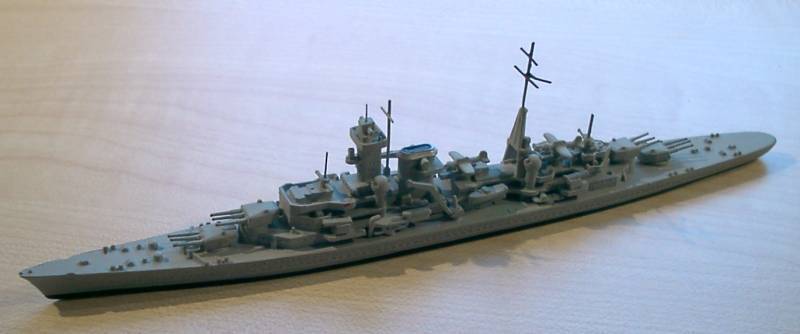

Ship models in 1/1250 scale.

Seydlitz
Seydlitz

Construction record

Seydlitz

Laid down
Deschimag Bremen, 29.12.1936
Launched
19.01.1939
Fate
blown up 10.04.1945 (Königsberg)
Cost
84,1 Mio Reichsmark
