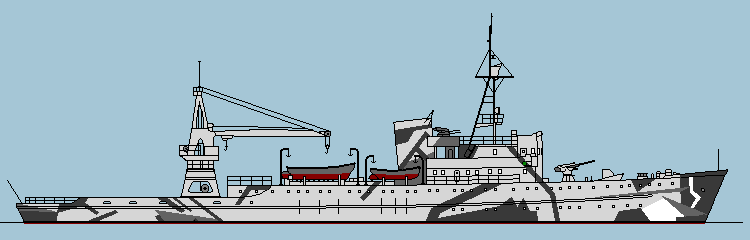

Profile drawing of Richthofen
Aircraft support shipRole
1943–1944Service or project period

Design and service

The story of Richthofen

Flugsicherungsschiffe were originally planned to support float planes in areas where no costal bases were available. The history of the ships in German services can be lead back to those ships used in the 1920s to enable float plane traffic across the South Atlantic for mail services. Some of those early ships were still used by the Kriegsmarine in World War II.

Equipped with a huge crane, those ships could take the float planes on board, refuel them or do some maintenance duty. Some larger ships also had a large catapult to launch the float planes with a higher fuel load that would be possible if the planes would start by themselves. Flugsicherungsschiffe were used in their traditional role in Norwegian waters where they launched float planes for reconaisance duties over the arctic sea.

During the last years of the war, these ships were also used in different roles, like escort ships, depots etc.

The Richthofen was the second ship of a class of five. Only two of them, the Richthofen (which first planned name was Mölders) and the Hans Albrecht Wedel were completed, the 3 other ones were cancelled in a very early phase of construction.

Operational history

Service timeline

Richhofen is commissioned and attached to the Erprobungsstelle Travemünde.

Sent into French waters.

Together with torpedo boat T24, mine hunters M275 and M 385 and the Sperrbrecher 157, Richthofen is attcked by the British cruiser Mauritius and the Canadian destroyer Iroquis. Sperrbecher 157 is sunk, both mine hunters are badly damaged.

Interned in Pasajes, Spain.

Taken over by Britain.

Given to the Soviet Union as Chibiny. Further fate unknown.

At a glance

Technical profile

Dimensions, armament, machinery and performance.

Dimensions

Size (Max)
1375t
Length (Total)
83,80 m
Length (Waterline)
79,90m
Beam
10,80 m
Draft
3,65 m
Crew
66

Armament

3cm Flak
1
2 cm MG
2
Machineguns
6
Floatplanes
3

Machinery

Shafts
2
Engines
4
Type
12cyl MAN diesel engines

Performance

Total Performance
8800 shp
Speed
21,5 kn
Range
4100 sm at 16 kn

The archive

Models

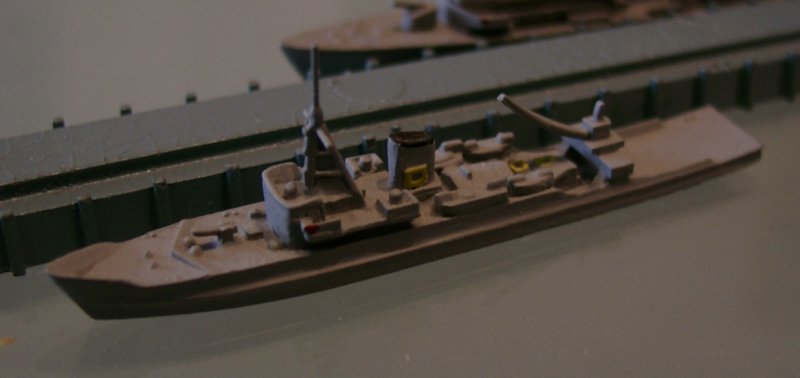

Ship models in 1/1250 scale.

Richthofen
Richthofen
